When it comes to securing a network, firewalls play an indispensable role. Among the leading firewall vendors, Palo Alto Networks stands out for its advanced, feature-rich solutions that go beyond traditional security to offer next-generation firewall capabilities. From small businesses to large enterprises, Palo Alto firewalls provide an effective defense mechanism to safeguard sensitive data and prevent cyber threats.

In this blog, we will explore the various firewall designs with Palo Alto Networks appliances, focusing on deployment strategies, best practices, and the key features that can be leveraged to create a robust network security architecture.

What is a Palo Alto Firewall?

Palo Alto Networks firewalls are next-generation security appliances that integrate traditional firewall features (such as access control) with modern, advanced functionalities like intrusion prevention, URL filtering, VPN, advanced threat protection, and application awareness. These firewalls are designed to provide visibility into network traffic and identify threats in real-time.

Palo Alto firewalls feature:

• App-ID: Identifies applications regardless of port or protocol, ensuring proper filtering.
• User-ID: Maps IP addresses to users for more granular control.
• Content-ID: Inspects content to detect malicious or unwanted files and malware.
• Threat Intelligence: Leverages cloud-based threat intelligence feeds for proactive security.

1. Firewall Design Considerations

Before diving into the actual firewall designs, it is important to understand the network’s needs and the role the firewall will play in the overall security posture. Consider the following aspects:

1.1. Network Architecture

The first step in designing a firewall is understanding the network topology. This includes the placement of the firewall (perimeter, internal, or hybrid), the number of interfaces required, and the network segments that need protection.

Common deployment options include:

• Perimeter Firewall Design: A traditional deployment where the firewall is positioned between the internal network and the external internet, controlling inbound and outbound traffic.


• DMZ (Demilitarized Zone) Firewall Design: A multi-zone design, where an additional zone is created between the internal network and the external network. This zone is used to host services such as web servers or email servers, providing an extra layer of security.



• Internal Firewall Design: A firewall placed internally to segment network traffic between different departments, ensuring that users in one department cannot access sensitive data in another without authorization.



1.2. Redundancy and High Availability (HA)

Redundancy is key to ensuring continuous network security and minimizing downtime. In a critical environment, the failure of a firewall could expose the network to vulnerabilities. Palo Alto Networks supports High Availability (HA) configurations, which allow two firewalls to operate in an active-passive or active-active mode to provide redundancy.

In Active-Passive HA, one firewall is active while the other is passive, taking over in case of failure. In Active-Active HA, both firewalls share traffic load, improving performance while providing redundancy.

Ensure proper HA design by placing firewalls in geographically distributed data centers or across different network segments for optimal protection.

1.3. Scalability and Performance

As organizations grow, so do their security needs. It’s essential to design your Palo Alto firewall deployment with scalability in mind. Consider the following factors:

• Traffic Load: Estimate the amount of traffic that the firewall will need to process. Palo Alto Networks offers various models that cater to different performance levels.
• Network Segments: As your network grows, more segments or zones may need to be protected. Be prepared to scale your firewall deployment to include additional interfaces, policies, and security zones.
• Cloud Integration: With more businesses adopting hybrid cloud environments, consider integrating Palo Alto firewalls with cloud-native services like AWS, Azure, or Google Cloud. Palo Alto Networks offers VM-Series firewalls specifically designed for cloud environments.

2. Common Palo Alto Firewall Design Architectures


Let’s take a look at several commonly used firewall designs based on different network requirements:

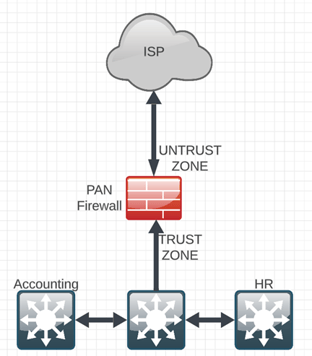

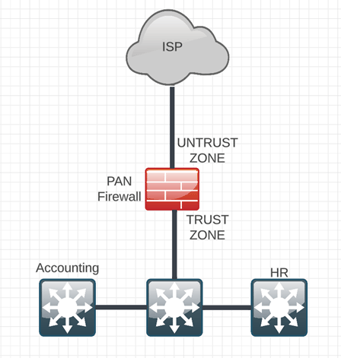

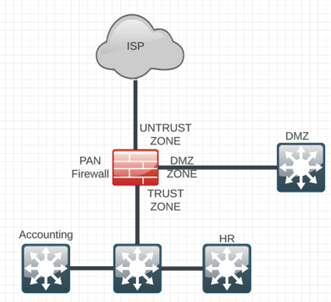

2.1. Simple Perimeter Security Design

In a simple perimeter security design, the firewall sits at the edge of the network, controlling traffic between the internal network and the internet. This type of setup is ideal for small to medium-sized businesses.

Key Elements:

• One or two interfaces on the firewall: external (untrusted) and internal (trusted).
• Security policies to restrict outbound and inbound traffic.
• Basic NAT (Network Address Translation) for internal network addresses.

Benefits:

• Simple to configure and deploy.
• Effective in blocking external threats such as malware and unauthorized access attempts.

Challenges:

• Limited segmentation and internal control.
• May not provide enough protection for internal threats or lateral movement within the network.

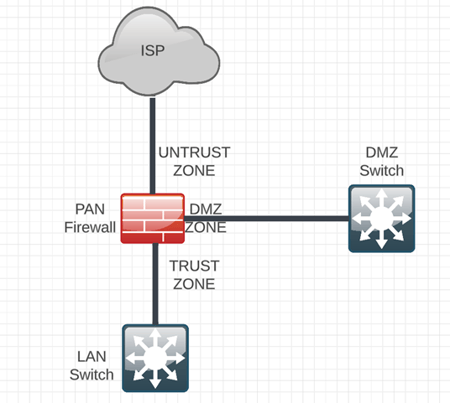

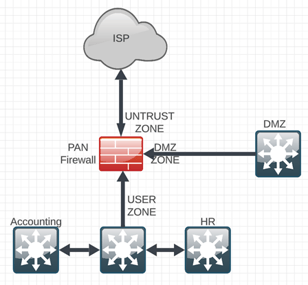

2.2. DMZ Architecture Design

In this design, a separate zone called the DMZ (Demilitarized Zone) is created to host public-facing services like web and mail servers. The DMZ is protected by a firewall, and there is another layer of firewall protection between the DMZ and the internal network. This design improves security by isolating the internet-facing services from the internal network.

Key Elements:

• Three zones: Internal, DMZ, and External.
• Firewalls control traffic between these zones with granular policies.
• Public services (web/mail servers) are located in the DMZ.

Benefits:

• Enhanced security for critical assets.
• Segmentation reduces the risk of lateral movement between internal systems.

Challenges:

• Requires more complex configuration and maintenance.
• Needs more firewall interfaces and policies.

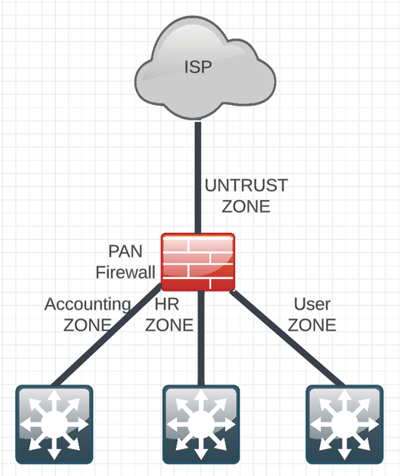

2.3. Internal Segmentation Design

For larger networks, internal segmentation is critical to protect sensitive data and limit the spread of attacks within the organization. In this design, firewalls are deployed between internal subnets to control traffic between different departments or business units. The firewall will also enforce policies based on user or application behavior.

Key Elements:

• Multiple internal zones to separate departments (e.g., HR, Finance, Development).
• Policies based on user roles, data sensitivity, or application needs.
• Logging and monitoring for auditing purposes.

Benefits:

• Granular control over traffic between departments.
• Limits the impact of security breaches.

Challenges:

• Requires more firewall resources and management.
• Complexity increases as more internal segments are added.

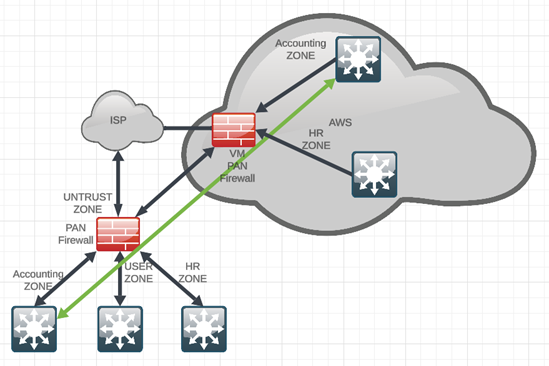

2.4. Cloud Security Design

As organizations embrace the cloud, they need a firewall that can seamlessly extend to hybrid or cloud-native environments. Palo Alto Networks offers VM-Series firewalls that can be deployed on public clouds like AWS and Azure, allowing businesses to apply consistent security policies across on-premises and cloud infrastructure.

Key Elements:

• Virtual firewalls (VM-Series) integrated into cloud environments.
• Security policies that span across on-premises and cloud-based workloads.
• Inter-zone security and traffic inspection between cloud environments and on-premises infrastructure.

Benefits:

• Consistent security for both cloud and on-premises resources.
• Scalable and flexible, adapting to cloud infrastructure changes.

Challenges:

• Cloud security configuration may be more complex.
• Increased visibility and control are required for monitoring hybrid architectures.

3. Best Practices for Palo Alto Firewall Design

3.1. Policy-Driven Security

The strength of Palo Alto firewalls lies in their policy-driven approach. Rather than just relying on IP addresses and ports, use App-ID and User-ID features to create policies based on applications and users. This ensures more accurate traffic inspection and enforces security based on context.

3.2. Leverage Threat Intelligence

Palo Alto Networks firewalls are equipped with advanced threat intelligence capabilities. Always ensure that your firewall is integrated with threat intelligence services like WildFire for malware analysis, AutoFocus for threat intelligence feeds, and URL Filtering to block harmful websites.

3.3. Regularly Update and Patch

Keep the firewall’s operating system and threat signatures up to date to protect against emerging threats. Palo Alto provides automatic software updates and daily threat intelligence updates to ensure your firewall defenses are always current.

3.4. Test Your Configuration

Before deploying a new firewall configuration to a production network, test the setup in a lab environment. Simulate potential attack scenarios and monitor the firewall’s response. This proactive approach helps to uncover any issues before they become security risks.

Conclusion

Palo Alto firewalls offer unparalleled security with rich features such as App-ID, User-ID, and Threat Intelligence, enabling network administrators to build highly secure and scalable network designs. Whether you’re deploying a simple perimeter firewall, a multi-zone DMZ, or a more complex internal segmentation architecture, understanding the fundamentals of Palo Alto firewall design ensures that you can implement a solution that meets your organization's security needs effectively.

When deciding on which design to use, remember that the firewall can only control traffic that is going through it. So, the underlined question is what you want to control and how much control do you want. Answering those questions will give you an understanding of how simple or complex your configuration will be.

Remember, security is a continuous process, and regularly revisiting and updating your firewall designs will help maintain robust protection against evolving threats.
